Western Rock

RoRo (80 mt per axle)
Open top notation
IMO1.1 fitted (hold and deck)
Exceptional strong tweendecks (5.0 mt per m2)
Huge loading area (1320 m2)
Shallow draught (3.4 meter in ballast and 5.0 meter fully loaded)
Environmentally friendly (fouling-free silicon coating, ballast water treatment)

Request a quote

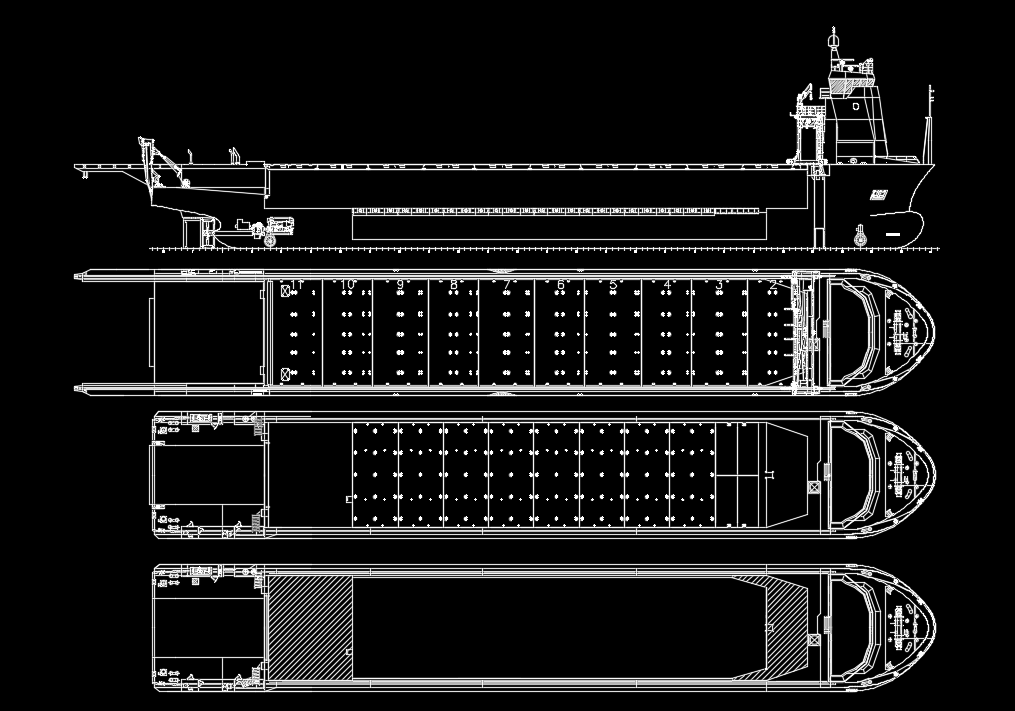

Download GA plan

Specifications:

Speed

12 knots

Deadweight

3400 dwt

Bale capacity

5840 cbm

Draught

5.00 meters (fully loaded)

Lane meters

679 lane meters
2.7 meters wide

969 lane meters
2.0 meters wide

Download datasheet

Download RoRo Plan (2.7 m width)

Download RoRo Plan (2.0 m width)
